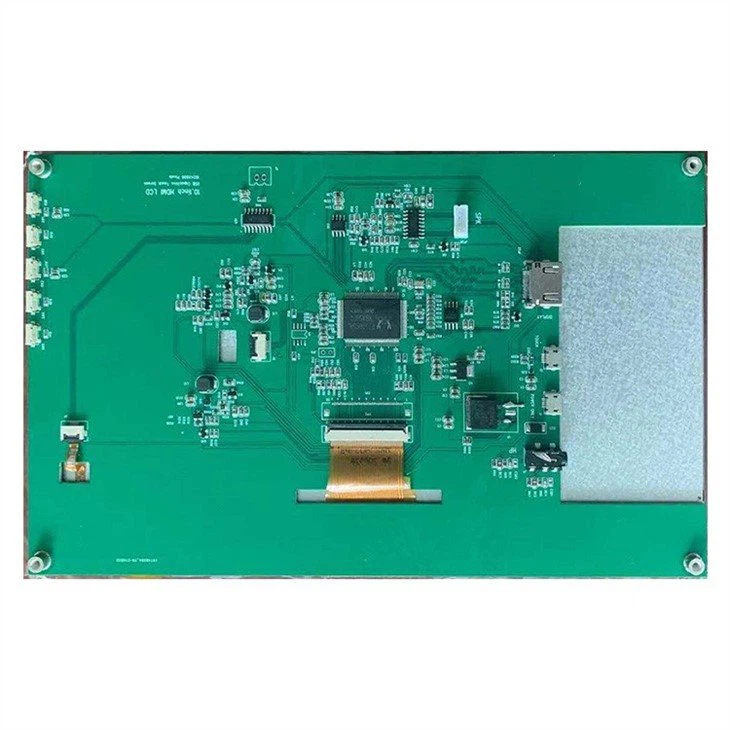

10.1inch Raspberry Pi Capacitive Touch LCD Display Screen, 1024×600, HDMI, IPS, Fully Laminated Screen, Supports Raspberry Pi, Jetson Nano, And PC

Product Description:

Product Drawing:



Product Specifications:



10.1 Inch Raspberry Pi Touchscreen
Structure Characteristics
Product Size	10.1Inch
Product Structure	G+G
Outline Dimension	236mm*143.2mm
View Area
Total Thickness
Electrical Characteristics
IC Type	GT911
Touch of points	5 Points
Interface	IIC
Operating Voltage
Special Performance Options
Glove Mode
Waterproof Level
Antistatic Test
Outdoor Products
Riot Level / IK Grade
Waterproof Operation Mode
Material Characteristics
Cover Lens
ITO-FLIM
OCA
Environmental Characteristics
OperatingTemperature	-10~50℃
Storage Temperature	-20~60℃
Reliability Test Conditions
High-temperature Storage	T=70℃, 72H
Low-temperature Storage	T=-30℃, 72H
High-temperature\High-humidity Storage	T=60℃ 90%,72H
Heat Shock	(-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm,No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times
Note: ①After the test under the above reliability conditions, the specimen should be stored in a standard environment for 24 hours before the functional test is OK. ②The reliability test should be performed with no D.C. power supplied and the touch panel stored on the flat plate. ③The standard condition presents 25±10°C of the temperature, 55±30%of the relative humidity, and 96±10 kPa of the atmospheric pressure. ④The reliability test should be performed on the touch panel by itself.



Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free



Product Applications:

Our touch screens are widely used for industrial control equipments, smart home appliances, door locks, bracelets, smart watch, wearable devices, automotive, boats & ships, medical equipments, POS terminals, game machine and other fields. This 10.1 Inch Raspberry Pi Touchscreen is customized for Raspberry pi.



Our Advantages:

1.Strong production capacity to ensure the delivery.

●3,000 square meters factory and dust-free workshop, more than 150 employees.

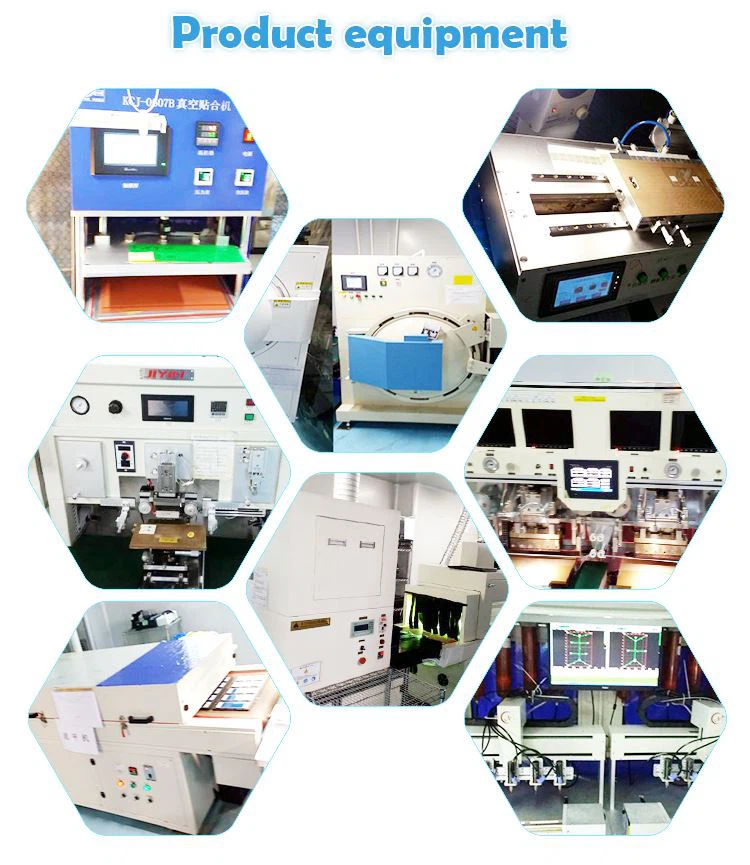

●8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000pieces.

●Yellow sensor light process + laser sensor process.



2.Experienced Team

More than 10 years experience professional engineer team.

3.Accept OEM & ODM.

Customers can cutomize their own products. You just need to send the drawings and samples to us. Our engineer will evaluate for you.

4.Modern Technology

Using mainstream touch screen yellow light process technology.

5.Strict and complete quality control system and have our own laboratory for testing. So customers no need to worry about the quality.

Q:Can the cover lens be curved?

A:Yes.



Q:Can your touch screens support USB interface?

A:Yes. Please contact with us and tell us your detailed requests.



Q:Does the capacitive touch screen support glove mode?

A:Yes. The capacitive touch screen can support glove mode. The glove mode touch screens have special requests for the materials, so contact with us for more details.





Our Honor and Certifications: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.
