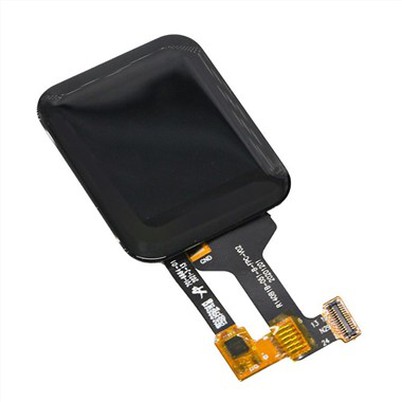

LCD Screen Touch Display

Name: China Customized LCD Screen Touch Display Suppliers, Manufacturers, Factory - Made in China - Head Sun
Brand: Head Sun
SKU: 158440058

LCD Screen Touch Display
Model：FT6788
Brand：Head Sun Co., Ltd
Border color：Black
Structure ：G+F+F
Interface：IIC
Touch points：1 Point
Total Thickness：
Outline Dimension：30.32±0.2mm*35.12±0.2mm

Send Inquiry

Description

Product Description:

Product Drawing:

1 Product Drawing

Product Specifications:

LCD Screen Touch Display
Structure Characteristics
Product Size	1.53Inch
Product Structure	G+F+F
Outline Dimension	30.32±0.2mm*35.12±0.2mm
View Area	27.82mm*27.82mm
Total Thickness
Electrical Characteristics
IC Type	CST716
Touch of points	1 Point
Interface	IIC
Operating Voltage
Special Performance Options
Glove Mode
Waterproof Level
Antistatic Test
Outdoor Products
Riot Level / IK Grade
Waterproof Operation Mode
Material Characteristics
Cover Lens
ITO-FLIM	Sensor Thickness:0.3mm
OCA
Environmental Characteristics
OperatingTemperature	-20~60℃
Storage Temperature	-30~70℃
Reliability Test Conditions
High-temperature Storage	T=70℃, 72H
Low-temperature Storage	T=-30℃, 72H
High-temperature\High-humidity Storage	T=60℃ 90%,72H
Heat Shock	(-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm,No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times
Note: ①After the test under the above reliability conditions, the specimen should be stored in a standard environment for 24 hours before the functional test is OK. ②The reliability test should be performed with no D.C. power supplied and the touch panel stored on the flat plate. ③The standard condition presents 25±10°C of the temperature, 55±30%of the relative humidity, and 96±10 kPa of the atmospheric pressure. ④The reliability test should be performed on the touch panel by itself.

Product Applications:

Our touch screens are widely used for industrial control equipments, smart home appliances, door locks, bracelets, smart watch, wearable devices, automotive, boats & ships, medical equipments, POS terminals, game machine and other fields. This LCD Screen Touch Display is customized for smart watch.

2 Product Application

Our Advantages:

1.Strong production capacity to ensure the delivery.

●3,000 square meters factory and dust-free workshop, more than 150 employees.

●8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000pieces.

●Yellow sensor light process + laser sensor process.

3 Product equipment

2.Experienced Team

More than 10 years experience professional engineer team.

3.Accept OEM & ODM.

Customers can cutomize their own products. You just need to send the drawings and samples to us. Our engineer will evaluate for you.

4.Modern Technology

Using mainstream touch screen yellow light process technology.

5.Strict and complete quality control system and have our own laboratory for testing. So customers no need to worry about the quality.

4 Inspection System

5 Our laboratory

Our Honor and Certifications: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.

6 Our honor and certification
