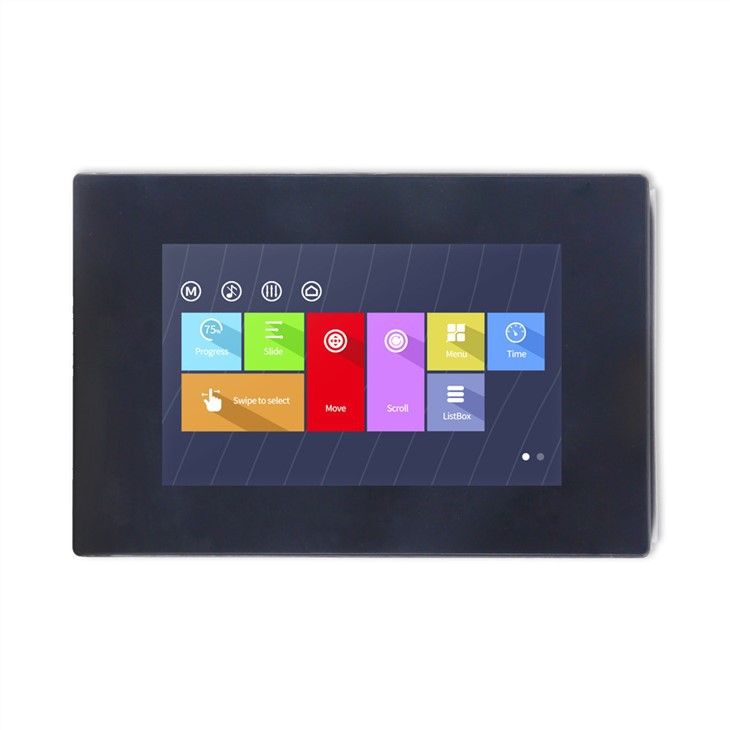

800×480 LCD Display Module With Touch Screen, Driver Board, RTC

Product Series

X5

Product Model

FT8048X550_011C_Y（C:Capacitive Touch Screen）

Diagonal Size of VA

5.0 inch

Outline Parameters

Parameters

Data

Explanation

Color

65K（65536） Color

16 bit palette 5R6G5B

Dimensions

107.07（L） ×160.04（W） ×21.2（H）

FT8048X550_011C_Y

LCD Size

120.7mm（L） ×75.8mm（W）

800×480 pixel mode

Visible Size（A.A.）

108mm（L） ×64.8mm（W）

800×480 pixel mode

Resolution

800×480 pixels

Can be set to 480×800

Touch Type

Capacitive Touch

Number of Touches

Min 1 million times

Backlight Mode

LED

acklight Life (Average)

>30,000 hrs

Brightness

300nit

100-levels brightness adjustable

Net Weight

237g

Working Environment and Reliability Parameters

Parameters

Test Conditions

Min

Typical

Max

Unit

Serial Port Baud Rate

Standard

2400

9600

921600

bps

Serial output level

（TXD）

Output 1，Iout=1mA

3.0

3.2

-

V

Output 0，Iout=-1mA

-

0.1

0.2

V

Serial input level

（RXD）

Output 1，Iout=1mA

2.0

3.3

5.0

V

Output 0，Iout=-1mA

-0.7

0.0

1.3

V

Interface level

3.3V/5V TTL Level(or  232 level)

Communication Mode

8,1,None

User Interface

4Pin_2.54mm with lock

SD Interface

Yes (FAT32 file format) Maximum support 32G MicroTF/SD card

Expand IO

way expansion IO

IO0-IO7 support input and output, control binding events, IO6-IO7 support PWM

RTC

With  RTC
