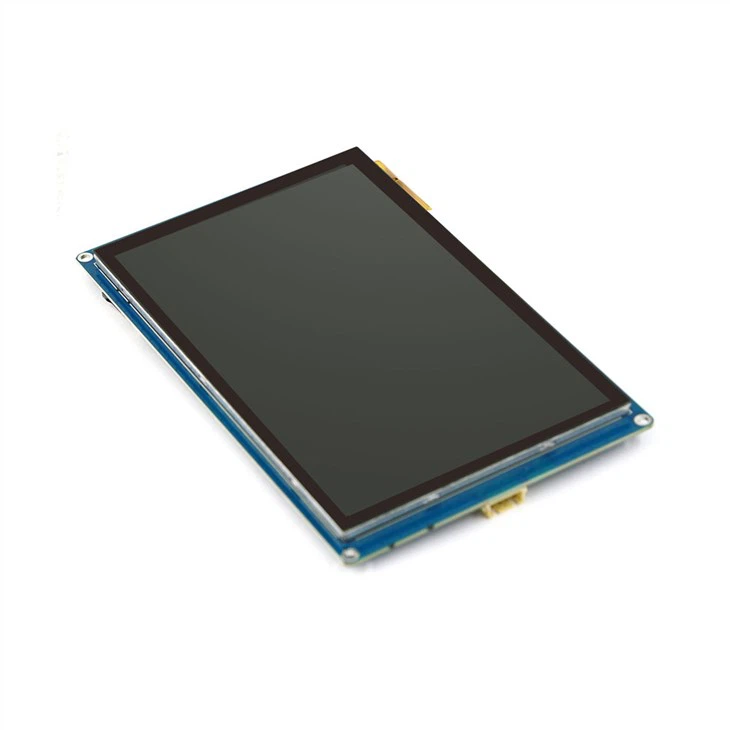

7.0 Inch LCD With Touch Screen And PCB Board For HMI Solutions

Product Model

FT1060X570_011R-I（R:Resistive Touchscreen）

Diagonal Size of VA

7.0 inch

Outline Parameters

Parameters

Data

Explanation

Color

65K（65536） Color

16 bit palette 5R6G5B

Dimensions

181（L） ×108（W） ×7.2（H）

FT1060X570_011R-I

LCD Size

164.9mm（L） ×100mm（W）

1024×600 pixel mode

Visible Size（A.A.）

154.08mm（L） ×85.92mm（W）

1024×600 pixel mode

Resolution

1024×600 pixels

Can be set to  600×1024

Touch Type

4-Wire Precision Resistive Touch

Number of Touches

Min 1 million times

Backlight Mode

LED

Backlight Life (Average)

>30,000 hrs

Brightness

300nit

100-levels brightness adjustable

Net Weight

265g

Electrical Performance Parameters

Parameters

Test Conditions

Min

Typical

Max

Unit

Operating Voltage

4.65

5

6.5

V

Working Current

VCC=+5V，Max Backlight Brightness

-

550

-

mA

SLEEP Mode

-

170

mA

Recommended working power： 5V 1A DC stabilized power supply.

Interface Performance Parameters

Parameters

Test Conditions

Min

Typical

Max

Unit

Serial Port Baud Rate

Standard

2400

9600

921600

bps

Serial output level（TXD）

Output 1，Iout=1mA

3.0

3.2

-

V

Output 0，Iout=-1mA

-

0.1

0.2

V

Serial input level（RXD）

Output 1，Iout=1mA

2.0

3.3

5.0

V

Output 0，Iout=-1mA

-0.7

0.0

1.3

V

Interface level

3.3V/5V TTL level(or 485 level)

Communication Mode

8,1,None

User Interface

4Pin_2.54mm with lock

SD Interface

Yes (FAT32 file format) Maximum support 32G MicroTF/SD card

Expand IO

8-way expansion IO

IO0-IO7 support input and output, control binding events, IO6-IO7 support PWM

RTC

With RTC

Memory Characteristics

Memory Class

Parameters

Typical

Unit

FLASH Memory

Font image storage space

120

MB

User Storage

EEPROM

1024

BYTE

Running memory(RAM)

Control/variable storage space

512

KB

Serial command buffer

Serial command buffer

4096

BYTE

Audio Features (Optional)

Speaker Characteristics

Parameters

Typical

Unit

Power

16 Ω 0.5W

0.5

W

Dimensions

Φ40 X 5.2H

mm
