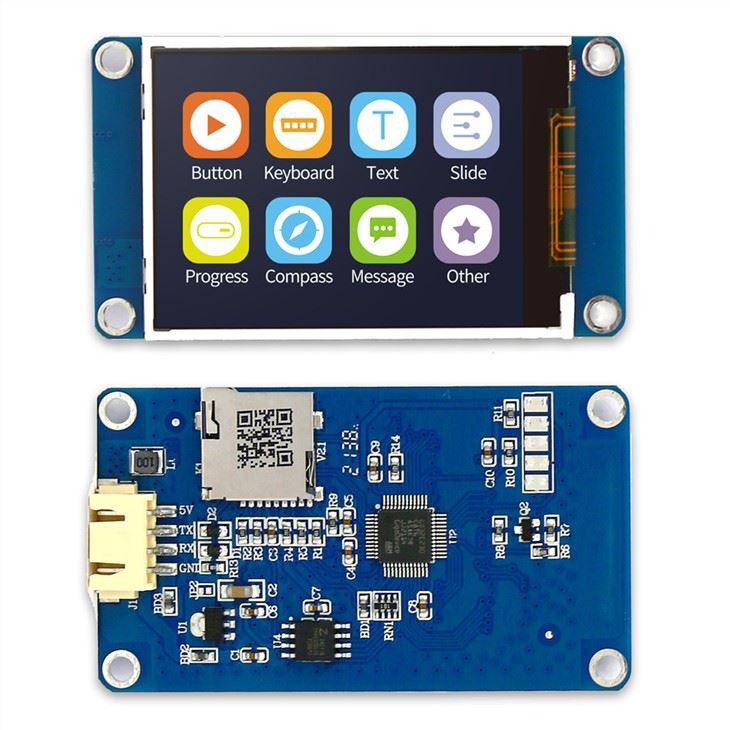

320×240 LCD Display Module With Touch Screen And Board
320×240 LCD Display Module With Touch Screen and Board
Model：FT3224T022_011N
Description
Drawing：
Product Specifications
Product Series | Basic Type | ||||||||||
Product Model | FT3224T022_011N （N: No Touch） | ||||||||||
FT3224T022_011R （R:4-Wire Resistive Touchscreen） | |||||||||||
Diagonal Size of VA | 2.2 inch | ||||||||||
Outline Parameters | |||||||||||
Parameters | Data | Explanation | |||||||||
Color | 65K（65536） Color | 16 bit palette 5R6G5B | |||||||||
Dimensions | 70.5 （L） ×40 （W） ×4.35 （H） | FT3224T022_011N | |||||||||
LCD Size | 56.5mm （L） ×40mm （W） | 320×240 pixel mode | |||||||||
Visible Size（A.A.） | 45.12mm （L） ×33.84mm （W） | 320×240 pixel mode | |||||||||
Resolution | 320×240 pixels | Can be set to 240×320 | |||||||||
Touch Type | 4-Wire Precision Resistive Touch | ||||||||||
Electrical Performance Parameters | |||||||||||
Product Applications:
HMI, lcd screen assembly, have been widely used in financial terminals, Consumer electronics, Self-service terminals and other industries. This 2.2 Inch 320×240 LCD Display Module With Touch Screen and Board specially customized for many kinds of smart devices.
Our Advantages:
Head Sun has employed a variety of methods to improve the performance of the entire work force with a superior customer service strategy , aiming to provide excellent service and high quality products to meet or even exceed our customer’s expectations.
1.Systematic management system to delivery right products to our customers.
2.Strictly quality control management system to maintain quality at sustainable level.
Inquiry:
Fill the below form to get our latest quotations!
