7 Inch Raspberry Pi Touchscreen

Product Description:

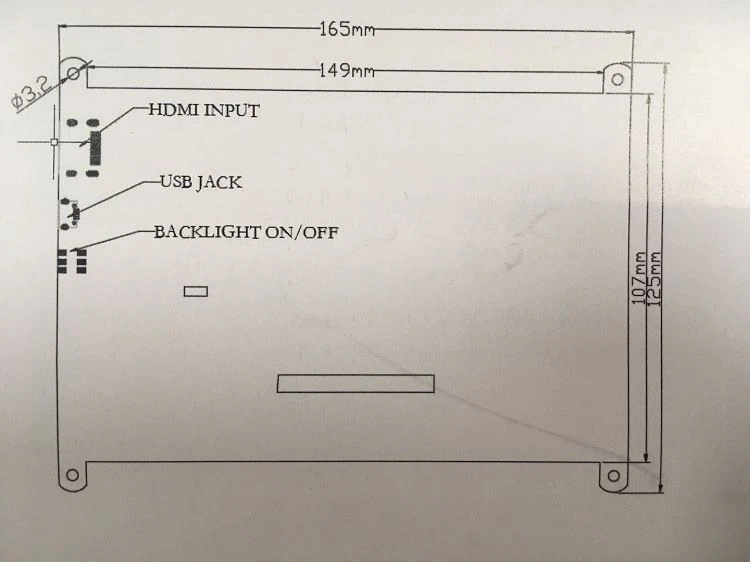

Product Drawing:



Product Specifications:

7 Inch Raspberry Pi Touchscreen
Structure Characteristics
Product Size	7Inch
Product Structure	G+G
Outline Dimension	165mm*125mm
View Area
Total Thickness
Electrical Characteristics
IC Type	GT911
Touch of points	5 Points
Interface	IIC
Operating Voltage
Special Performance Options
Glove Mode
Waterproof Level
Antistatic Test
Outdoor Products
Riot Level / IK Grade
Waterproof Operation Mode
Material Characteristics
Cover Lens
ITO-FLIM
OCA
Environmental Characteristics
OperatingTemperature	-10~50℃
Storage Temperature	-20~60℃
Reliability Test Conditions
High-temperature Storage	T=70℃, 72H
Low-temperature Storage	T=-30℃, 72H
High-temperature\High-humidity Storage	T=60℃ 90%,72H
Heat Shock	(-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm,No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times
Note:①After the test under the above reliability conditions, the specimen should be stored in a standard environment for 24 hours before the functional test is OK.②The reliability test should be performed with no D.C. power supplied and the touch panel stored on the flat plate.③The standard condition presents 25±10°C of the temperature, 55±30%of the relative humidity, and 96±10 kPa of the atmospheric pressure.④The reliability test should be performed on the touch panel by itself.

Features:

1. The hardware resolution is 1024×600.

2. Capacitive touch control.

3. Support mainstream mini PCs such as Raspberry Pi (Raspberry Pi), BB Black, Banana Pi, etc.

4. When used with Raspberry Pi, it supports Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT, free of drive.

 5. When used as a computer monitor, it supports Windows 10 / 8.1 / 8 / 7, five-point touch control, without driver.

6. Support backlight control, more power saving.



Product Applications:

This 7 Inch Raspberry Pi Touchscreen is customized for Raspberry Pi, but it is not limited to the 7-inch HDMI display of Raspberry Pi, 1024x600 HD resolution, with capacitive touch screen. This product is also a universal HDMI display, users can use it on other mini PCs (drive support is required), or even use it as a computer monitor.



Our Advantages:

1.Strong production capacity to ensure the delivery.

●3,000 square meters factory and dust-free workshop, more than 150 employees.

●8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000pieces.

●Yellow sensor light process + laser sensor process.



2.Experienced Team

More than 10 years experience professional engineer team.

3.Accept OEM & ODM.

Customers can cutomize their own products. You just need to send the drawings and samples to us. Our engineer will evaluate for you.

4.Modern Technology

Using mainstream touch screen yellow light process technology.

5.Strict and complete quality control system and have our own laboratory for testing. So customers no need to worry about the quality.



Q:What is the max thickness for the cover lens you can make?

A:Our touch screen can support max 7mm thick cover lens.



Q:Can the cover lens be with step?

A:Yes.



Q:Can the capacitive touch screen be ring structure?

A:Yes.
