4.3 Inch HMI Touch Screen With LCD Display
4.3 Inch HMI Touch Screen With LCD Display
Model：FT4827X543_011X_Y
Description

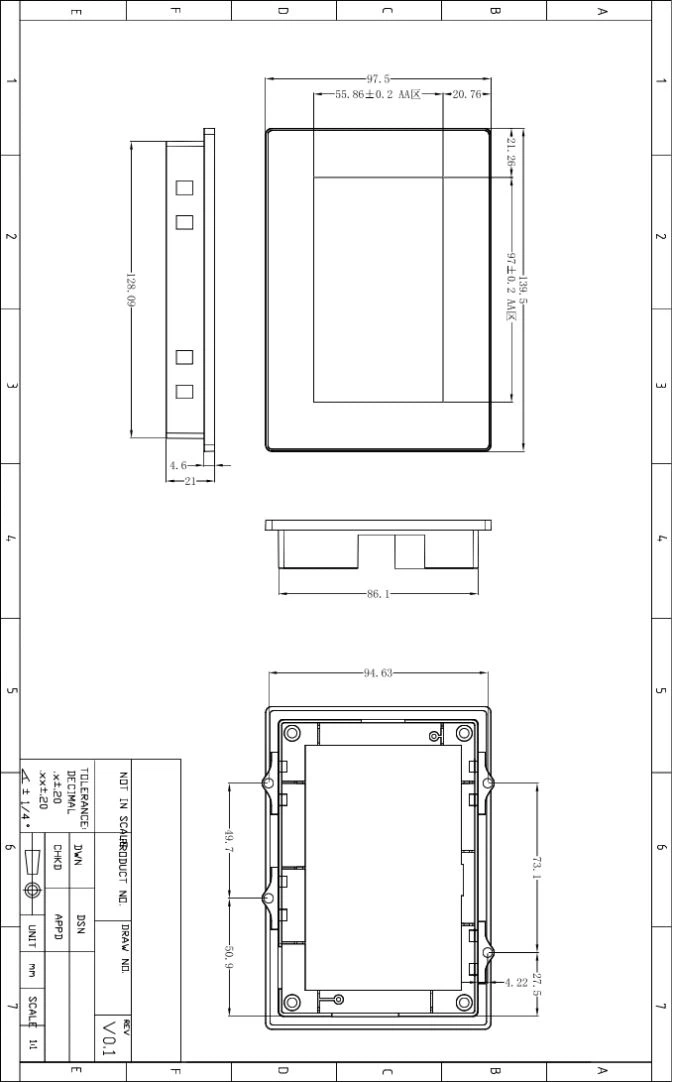

Drawing：
Product Model Specifications
Product Series | X5 |
Product Model | FT4827X543_011R_Y（R:4-Wire Resistive Touchscreen） |
FT4827X543_011C_Y（C:Capacitive Touch Screen） | |
Diagonal Size of VA | 4.3 inch |
Outline Parameters
Parameters | Data | Explanation |
Color | 65K（65536） Color | 16 bit palette 5R6G5B |
Dimensions | 139.5（L） ×97.5（W） ×21（H） | FT4827X543_011R_Y |
139.5（L） ×97.5（W） ×21（H）） | FT4827X543_011C_Y | |
LCD Size | 105.50mm（L） ×67.20mm（W） | 480×272 pixel mode |
Visible Size（A.A.） | 95.04mm（L） ×53.86mm（W） | 480×272 pixel mode |
Resolution | 480×272 pixels | Can be set to 272×480 |
Touch Type | 4-Wire Precision Resistive Touch / Capacitive Touch |
HMI, lcd screen assembly, have been widely used in financial terminals, Consumer electronics, Self-service terminals and other industries. This 4.3 Inch HMI Touch Screen With LCD Display is specially customized for many kinds of smart devices.
Our Honor and Certifications: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.
