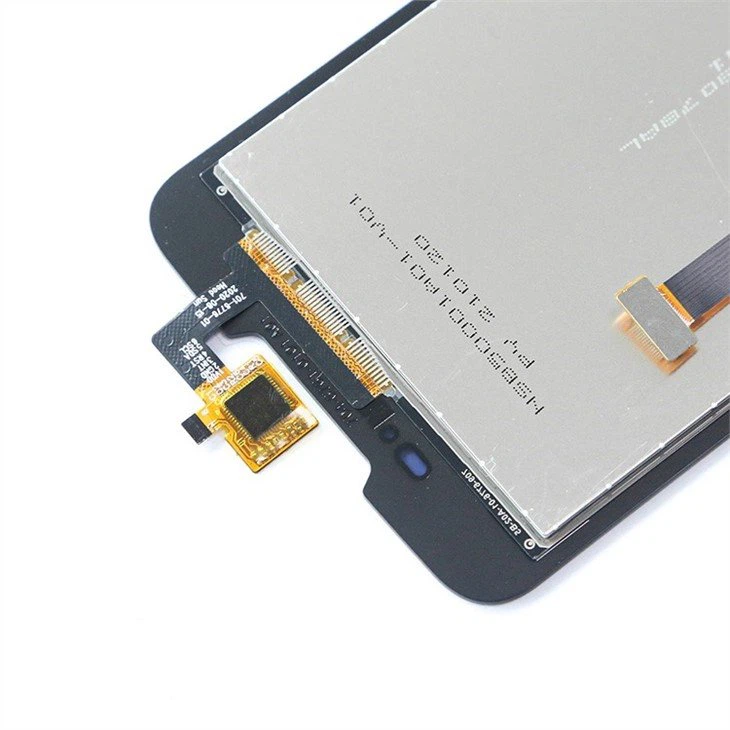

Touch Screen display
Model：FT6776
Brand：Head Sun Co., Ltd
Border color：Black
Structure ：G+F+F
Interface：IIC
Touch points：5 Points
Total Thickness：TP:1.45mm
Outline Dimension：71.40±0.1mm*137.43±0.1mm

Send Inquiry

Description

Product Description:

Product Drawing:

1 Product Drawing

Product Specifications:

Touch Screen display
Structure Characteristics
Product Size	4.99Inch
Product Structure	G+F+F
Outline Dimension	71.40±0.1mm*137.43±0.1mm
View Area	62.30±0.15mm*110.60±0.15mm
Total Thickness	TP:1.45mm
Electrical Characteristics
IC Type	GT911
Touch of points	5 Points
Interface	IIC
Operating Voltage
Special Performance Options
Glove Mode
Waterproof Level
Antistatic Test
Outdoor Products
Riot Level / IK Grade
Waterproof Operation Mode
Material Characteristics
Cover Lens	Dragontrail, Thickness=1.1mm
ITO-FLIM	Thickness T:0.05mm B:0.125mm
OCA	Thickness T:0.125mm B:0.05mm
Environmental Characteristics
OperatingTemperature	-20~70℃
Storage Temperature	-30~80℃
Reliability Test Conditions
High-temperature Storage	T=70℃, 72H
Low-temperature Storage	T=-30℃, 72H
High-temperature\High-humidity Storage	T=60℃ 90%,72H
Heat Shock	(-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm,No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times
Note: ①After the test under the above reliability conditions, the specimen should be stored in a standard environment for 24 hours before the functional test is OK. ②The reliability test should be performed with no D.C. power supplied and the touch panel stored on the flat plate. ③The standard condition presents 25±10°C of the temperature, 55±30%of the relative humidity, and 96±10 kPa of the atmospheric pressure. ④The reliability test should be performed on the touch panel by itself.

Product Applications:

Our touch screens are widely used for industrial control equipments, smart home appliances, door locks, bracelets, smart watch, wearable devices, automotive, boats & ships, medical equipments, POS terminals, game machine and other fields. This Touch Screen display is customized for smart devices.

2 Product Application

Our Advantages:

1.Strong production capacity to ensure the delivery.

●3,000 square meters factory and dust-free workshop, more than 150 employees.

●8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000pieces.

●Yellow sensor light process + laser sensor process.

Q:What is the recommended gap distance between the touch screen and LCD?

A:It’s better over 1mm. At least keep 0.5mm gap between CTP and LCD.

Q:Can I buy touch screen without pay development fee?

A:Yes. You can buy our existing products without paying development costs

Q:Can I use 3.3V power supply?

A:The touch panel can work between 1.8v-5v power supply.

Q:Does the touch screen comply with the RoHS standard?

A:Yes.

Q:The recommended structure for the touch screen to be mounted A:on the LCD.

Q:What are the advantages of capacitive touch screens over resistive touch screens?

A:1. Good damage resistance and not easy to scratch.

2. Good touch sensitivity.

3. It can support multi-touch.

Our Honor and Certifications: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.
