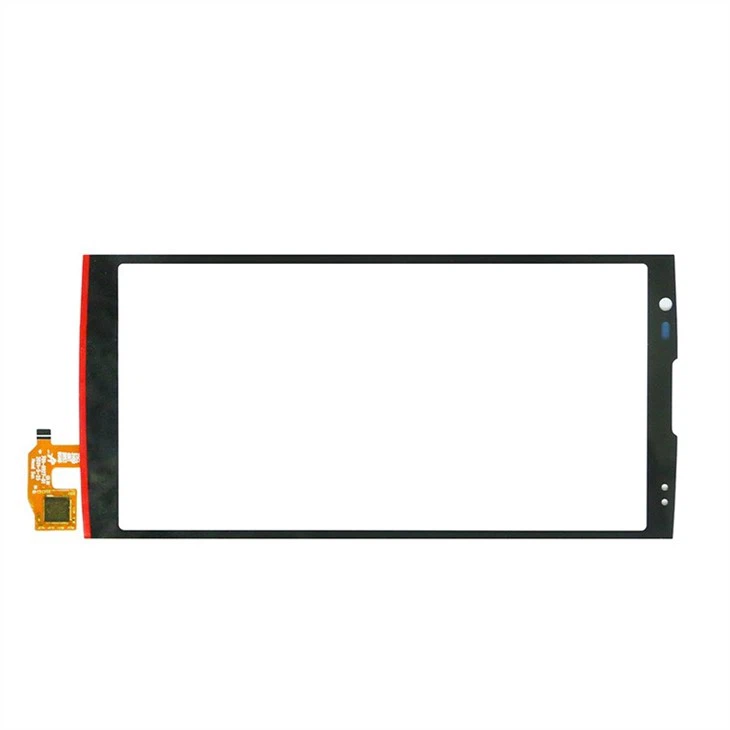

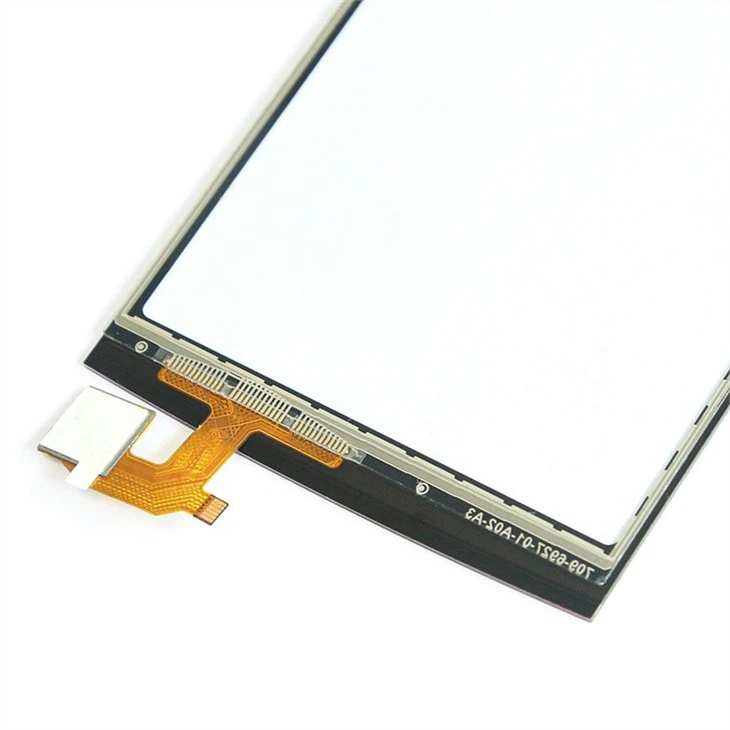

5.5 Inch Touch Capacitive Screen
5.5 Inch Touch Capacitive Screen
Model:FT6927
Structure :G+F+F
Interface:IIC
Touch points:10 Points
Total Thickness:1.35mm
Outline Dimension:66.70±0.05mm*140.78±0.05mm
Description
Product Description:
Product Drawing:

Product Specifications:
5.5 Inch Touch Capacitive Screen | |
Structure Characteristics | |
Product Size | 5.5Inch |
Product Structure | G+F+F |
Outline Dimension | 66.70±0.05mm*140.78±0.05mm |
View Area | 62.28±0.15mm*124.17±0.15mm |
Total Thickness | 1.35mm |
Electrical Characteristics | |
IC Type | GT1151QM |
Touch of points | 10 Points |
Interface | IIC |
Operating Voltage | |
Material Characteristics | |
Cover Lens | Panda, Thickness=1.0mm |
ITO-FLIM | Thickness T:0.05m B:0.125mm |
OCA | Thickness T:0.125m B:0.05mm |
Environmental Characteristics | |
OperatingTemperature | -20~60℃ |
Storage Temperature | -30~70℃ |
Reliability Test Conditions | |
High-temperature Storage | T=70℃, 72H |
Low-temperature Storage | T=-30℃, 72H |
High-temperature\High-humidity Storage | T=60℃ 90%,72H |
Heat Shock | (-20 ゚ C(30min)←(5min Max.)→60 ゚ C(30min))=50 Set |
Electro Static Discharge | Air discharge :±8KV,Contact discharge :±4KV |
Hardness | ≥6H |
Ball Drop Test | 64g 40cm,No breakage at the center point for 3 times |
FPC Bending Test | The bending radius R1.0 mm, more than three times |
Product Applications:
Our touch screens are widely used in medical devices, industrial control, smart home, marine electronics and other consumer electronics.

Why Choose Us:
1. Strong production capacity to ensure the delivery.
2. More than 10 years experience
3. OEM & ODM Service.
4. Modern Technology
5. Strict and complete quality control system and have our own laboratory for testing.


Our Honor and Certificates: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.
