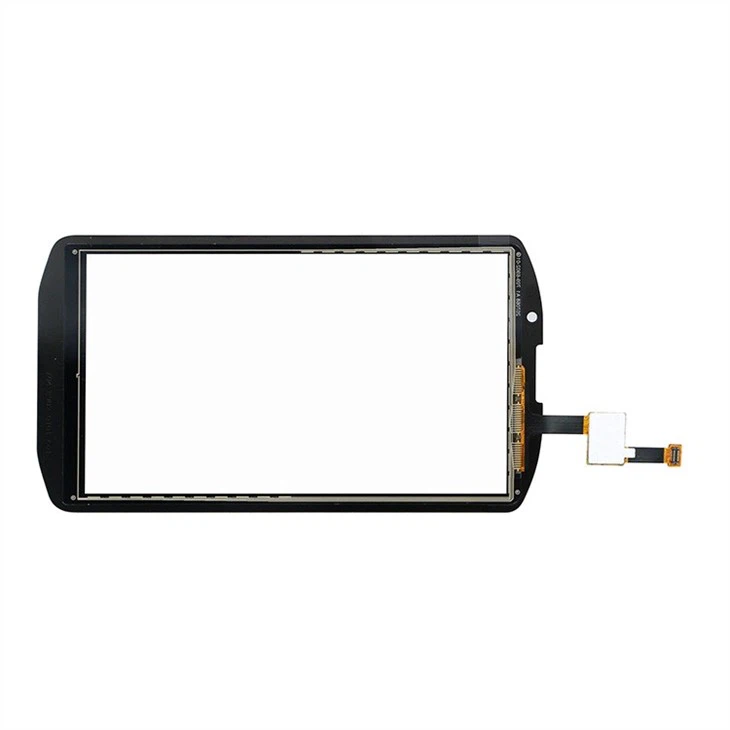

5.5 Inch Display Touch Panel

Product Description:

Product Drawing:

Product Specifications:

5.5 Inch Display Touch Panel
Structure Characteristics
Product Size	5.5Inch
Product Structure	G+F+F
Outline Dimension	72.84±0.05mm*133.48±0.05mm
View Area	62.7±0.1mm*111.00±0.15mm
Total Thickness	1.05mm
Electrical Characteristics
IC Type	CHSC5448
Touch of points	10 Points
Interface	IIC
Material Characteristics
Cover Lens	AGC, Thickness=0.70mm
ITO-FLIM	Thickness T:0.05m B:0.125mm
OCA	Thickness T:0.125m B:0.05mm
Environmental Characteristics
OperatingTemperature	-20~60℃
Storage Temperature	-30~70℃
Reliability Test Conditions
High-temperature Storage	T=70℃, 72H
Low-temperature Storage	T=-30℃, 72H
High-temperature\High-humidity Storage	T=60℃ 90%,72H
Heat Shock	(-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm,No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times

Product Applications:

 1.Car computer and GPS
 2.Open touch TV/PC
 3.Touch POS
 4.LCD/LED touch monitor
 5.Touch all-in-one pc
 6. Touch Kiosk and other devices

FAQ:

Q:Does the capacitive touch screen support glove mode?

A:Yes. The capacitive touch screen can support glove mode. The glove mode touch screens have special requests for the materials, so contact with us for more details.

Q:What’s the difference between projected capacitive touch panel and surface capacitive touch panel?

A:Projected capacitive touch panel can support multi-touch,but surface capacitive touch panel only support single point touch. And the projected capacitive touch panel can support touch with glove, can be operated through a layer of cover glass.
