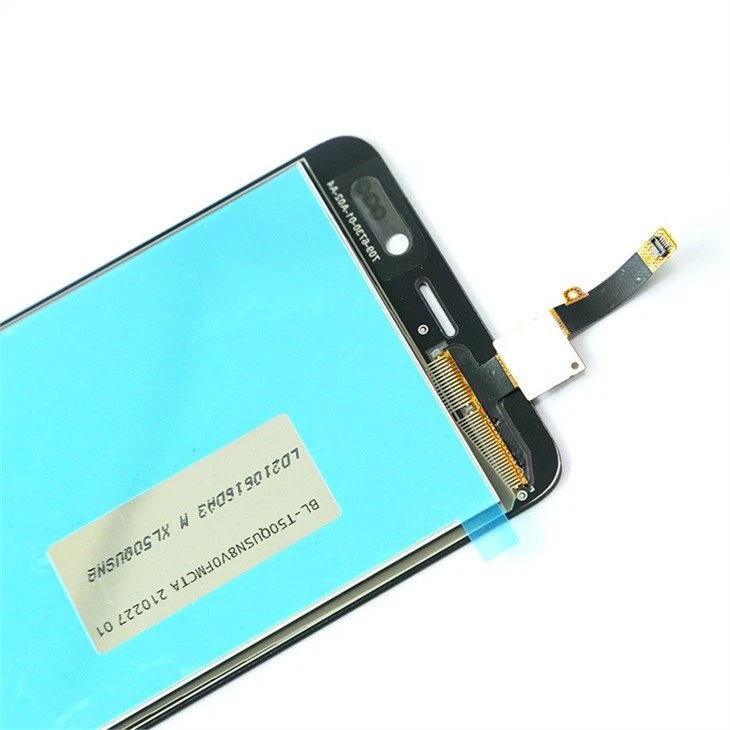

TFT Touch Display
TFT Touch Display
Model：FT6730
Interface：IIC
Touch points：10 Points
Total Thickness：TP:1.0mm
Outline Dimension：69.20±0.08mm*144.71±0.08mm
Description
Product Description:
Product Drawing:
Product Specifications:
4.95 inch TFT Touch Display | |
Structure Characteristics | |
Product Size | 4.95Inch |
Product Structure | G+F+F |
Outline Dimension | 69.20±0.08mm*144.71±0.08mm |
View Area | 61.94±0.15mm*109.88±0.15mm |
Total Thickness | TP:1.0mm |
Electrical Characteristics | |
IC Type | GT917S |
Touch of points | 10 Points |
Interface | IIC |
Cover Lens | Corning, Thickness=0.7mm |
ITO-FLIM | Thickness T:0.05mm B:0.05mm |
OCA | Thickness T:0.15mm B:0.05mm |
Environmental Characteristics | |
OperatingTemperature | -20~60℃ |
Storage Temperature | -30~70℃ |
Reliability Test Conditions | |
High-temperature Storage | T=70℃, 72H |
Low-temperature Storage | T=-30℃, 72H |
High-humidity Storage | 90%,72H |
Heat Shock | (-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set |
Electro Static Discharge | Air discharge :±8KV,Contact discharge :±4KV |
Hardness | ≥6H |
Ball Drop Test | 64g 40cm,No breakage at the center point for 3 times |
FPC Bending Test | The bending radius R1.0 mm, more than three times |
Product Applications:
Our touch screens are widely used for industrial control equipments, smart home appliances, door locks, bracelets, smart watch, wearable devices, automotive, boats & ships, medical equipments, POS terminals, game machine and other fields. This TFT Touch Display is customized for smart cell phone.
Our Honor and Certifications: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.
