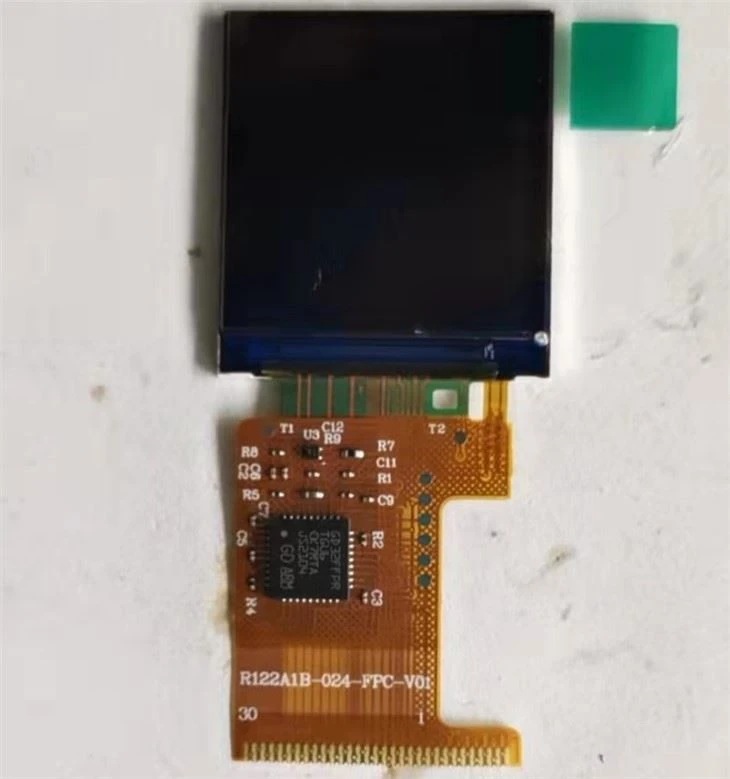

R122A1B-024-FPC-V01

Name: China Customized R122A1B-024-FPC-V01 Suppliers, Manufacturers, Factory - Made in China - Head Sun
Brand: Head Sun
SKU: 167905618

R122A1B-024-FPC-V01
Model：1.2
Application：Gaming Machine Edge-lit Buttton
Description: 1.2 Inch R122A1B-024-FPC-V01 Edge-Lit Button LCD Screen Display for Gaming Machine

Send Inquiry

Description

Product Description:

1.2 Inch R122A1B-024-FPC-V01 Edge-Lit Button LCD Screen Display for Gaming Machine

Product Photos:

IGT Gaming Button

Edge-Lit Button LCD Screen

Slot Machine Edge Lit Button Display

Product Specifications:

R122A1B-024-FPC-V01
Structure Characteristics
Product Size	1.2inch
Product Structure
Outline Dimension
View Area
Total Thickness
Electrical Characteristics
IC Type
Touch of points
Interface
Operating Voltage
Special Performance (Customization Accepted)
Glove operation mode
Waterproof Level
Antistatic Test
Outdoor Products
Riot Level / IK Grade
Waterproof Operation Mode
Material Characteristics
Cover Lens
ITO-FLIM
OCA
Environmental Characteristics
OperatingTemperature	‘-20～ 70°C
Storage Temperature	’-30～ 80°C
Reliability Test Conditions
High-temperature Storage	T=70℃, 72H
Low-temperature Storage	T=-30℃, 72H
High-temperature\High-humidity Storage	T=60℃ 90%,72H
Heat Shock	(-20 ﾟ C(30min)←(5min Max.)→60 ﾟ C(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm,No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times
Note: ①After the test under the above reliability conditions, the specimen should be stored in a standard environment for 24 hours before the functional test is OK. ②The reliability test should be performed with no D.C. power supplied and the touch panel stored on the flat plate. ③The standard condition presents 25±10°C of the temperature, 55±30%of the relative humidity, and 96±10 kPa of the atmospheric pressure. ④The reliability test should be performed on the touch panel by itself.

Product Applications:

R122A1B-024-FPC-V01 is a 1.2 inch LCD Screen Display for Edgelit Button of gaming machine.

Edgelit Button

Our Advantages:

1.Strong production capacity to ensure the delivery.

●3,000 square meters factory and dust-free workshop, more than 150 employees.

●8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000pieces.

●Yellow sensor light process + laser sensor process.

3 Product equipment

2.Experienced Team

More than 10 years experience professional engineer team.

3.Accept OEM & ODM.

Customers can cutomize their own products. You just need to send the drawings and samples to us. Our engineer will evaluate for you.

4.Modern Technology

Using mainstream touch screen yellow light process technology.

5.Strict and complete quality control system and have our own laboratory for testing. So customers no need to worry about the quality.

4 Inspection System

5 Our laboratory

Q:Can you produce the touchscreens with all-in-one black effect?

A:Yes.

Q:What kind of structure does your product have?

A:Our products mainly include G+G, G+F, G+F+F structure.

Q:Can you produce the products with P+G structure?

A:Yes.

Our Honor and Certifications: Head Sun has successfully passed the high-tech enterprise, audited supplier and ISO9001 quality management system assessment.

6 Our honor and certification
