8inch XGA A080XTN01.5 Industrial TFT LCD Display Panel 300nit RGB1024*768

8inch XGA A080XTN01.5 Industrial TFT LCD Display Panel 300nit RGB1024*768

8inch Industrial TFT LCD Display
custom touch service
tailor cover coating glass
bonding service

Send Inquiry

Description

8inch XGA A080XTN01.5 Industrial TFT LCD Display Panel 300nit RGB1024*768

Product Details



Head Sun provide8inch XGA A080XTN01.5 Industrial TFT LCD Display 300nit RGB1024*768 industrial TFT LCD panel. Contact us for more information.



Brand: AUO

Model P/N: A080XTN01.5

Diagonal Size: 8.0inch

Panel Type: a-Si TFT-LCD, LCM

Resolution: 1024(RGB)×768, XGA  160PPI

Pixel Format: RGB Vertical Stripe

Active Area: 162.048(W)×121. 536(H) mm

Bezel Opening: 164.65(W)×124.14(H) mm

  • Outline Size: 183 × 141 × 5.2 (H×V×D)mm

  • Surface: Antiglare, Hard coating (3H) (Also can customize Cover glass and tialor various cover coating)

  • Brightness: 300 cd/m² (Typ.)

  • Contrast Ratio: 700:1 (Typ.) (TM)

  • Viewing Angle: 70/70/60/65 (Typ.)(CR≥10)  Left / Right / Up / Down

  • Display Mode: TN, Normally White, Transmissive

  • Best View on: -

  • Response Time: 20/20 (Typ.)(Tr/Td) ms

  • Support Color : 262K/16.7M   50% NTSC

  • Backlight: WLED  [3S9P] , 15K hours , W/O Driver

  • Panel Weight: 158.5g (Max.)

  • Application: Industrial

  • Interface Type: LVDS (1 ch, 6/8-bit) , 40 pins FPC

  • Input Voltage: 3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VHG/VGL)
  • Max. Ratings Storage Temp.: -20 ~ 70 °C    Operating Temp.: -10 ~ 60 °C



  • All 8inch Industrial LCD Panels:
  model MP/2023/Q2 2023/Q3~2024
8" Model 8"
SVGA
800x600		 A080STN01.0       Ju.l15
250nits,140/135
-10~60.C,10K
Digital,6bit+FRC,w/OD.		 / / / /
8"
XGA
1024x768		 A080XTN01.5     Dec.18
300nits,140/130
-10~60.C,15K
LVDS,8bit,w/OD.		 A080XTN01.4     Dec.18
250nits,140/130
-10~60.C,15K
LVDS,8bit,w/OD.		 / / /
8"
WUXGA
1200x1920		 G080UAN02.2      Apr.20
465nits,178/178
0~50.C,15K
,8bit,w/OD		 / / / /

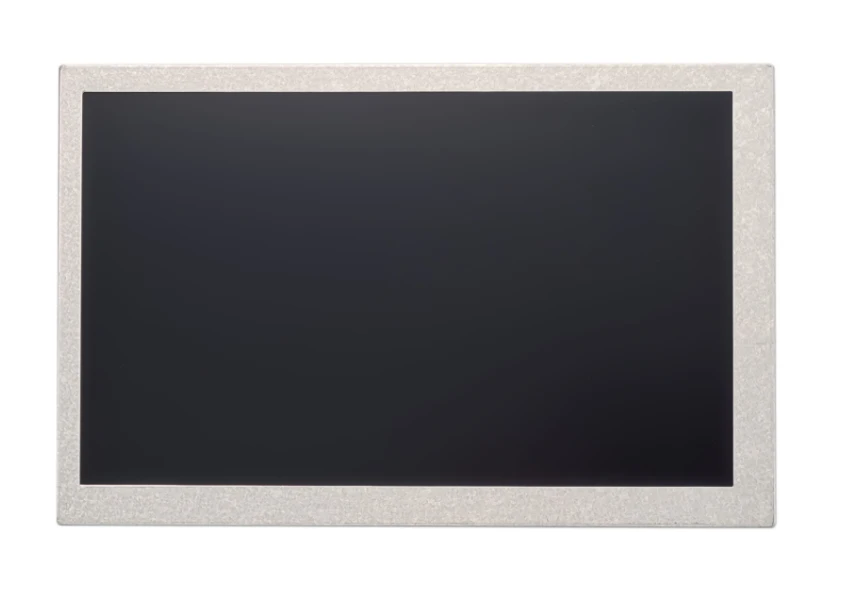

Product Picture







At Headsun, we specialize in providing top-notch touch screen, LCD, and PCB board assembly services. Here's why you should choose us:

1️⃣ Tailored Solutions: We customize solutions for diverse industries, empowering your innovation.

2️⃣ Quality First: Rigorous quality control ensures durable and high-performance components.

3️⃣ Prototyping Excellence: Refine your designs with our prototyping services for a perfect end product.





Consult with Head Sun: Reach out to Head Sun for detailed information, technical support, and any specific questions or requirements you may have regarding the replacement panels.
